Art. No. 6404120UA-157
Order Code DM152-25-KA20-10-D054-4-V1-YU-E85

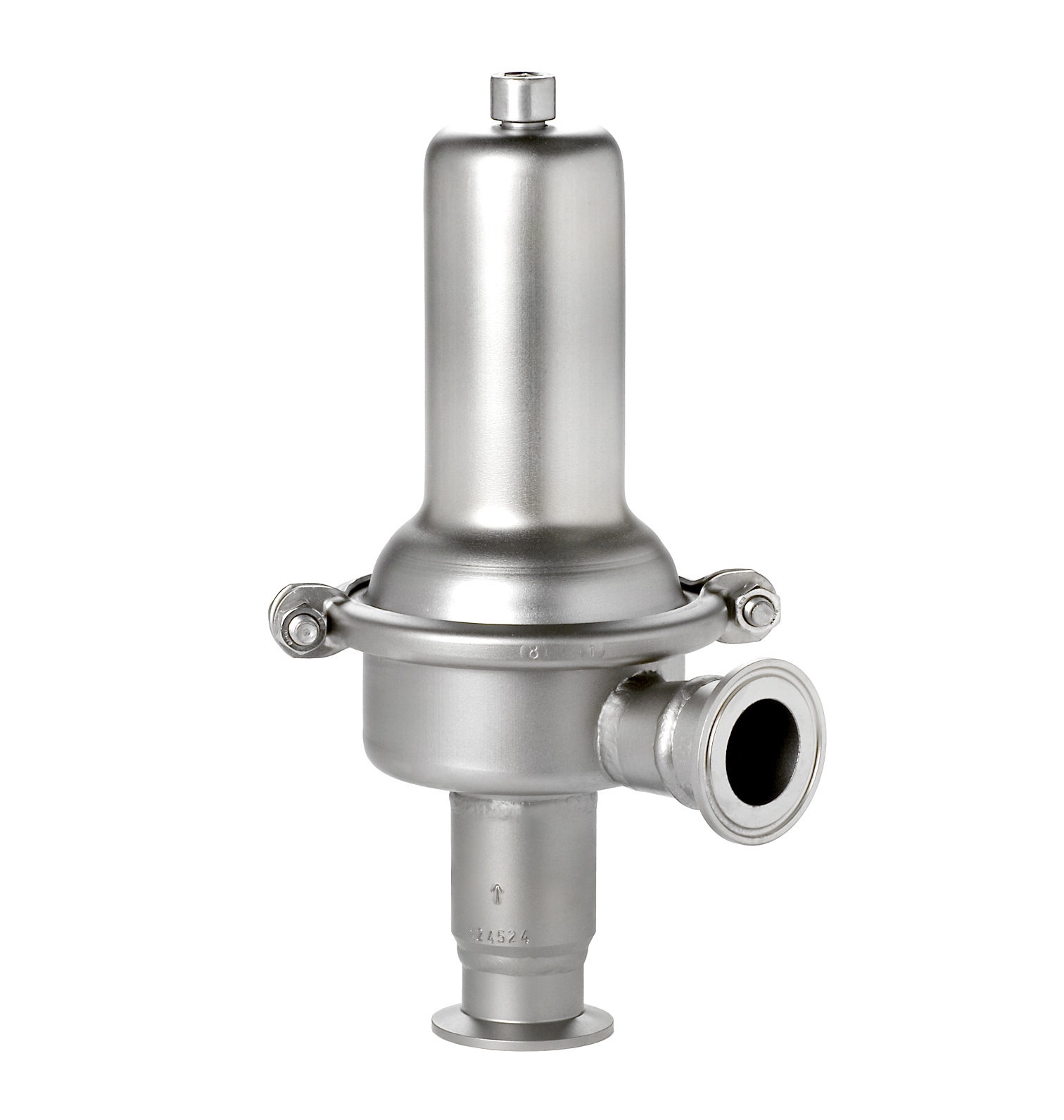

pressure reducing valve DM 152 DN 25 (1";)
single seated angle valve, diaphragm controlled
kvs-value: 4 m³/h
temperature range: -20°C to +180°C
max. inlet pressure: 8 bar
setting range: 0,8 - 2,5 bar
maximum permissible outlet pressure: 3,75 bar
nominal pressure: 10/6 bar
inlet connection: Tri-Clamp connection ø50,5/25,4x1,65
outlet connection: Tri-Clamp connection ø50,5/25,4x1,65
dimension: 90/90 mm
cone gasket: metallic
diaphragm: FKM
protection film: PTFE
material: all made of stainless steel
certification: medium wetted elastomer with FDA and USP Class VI certification
